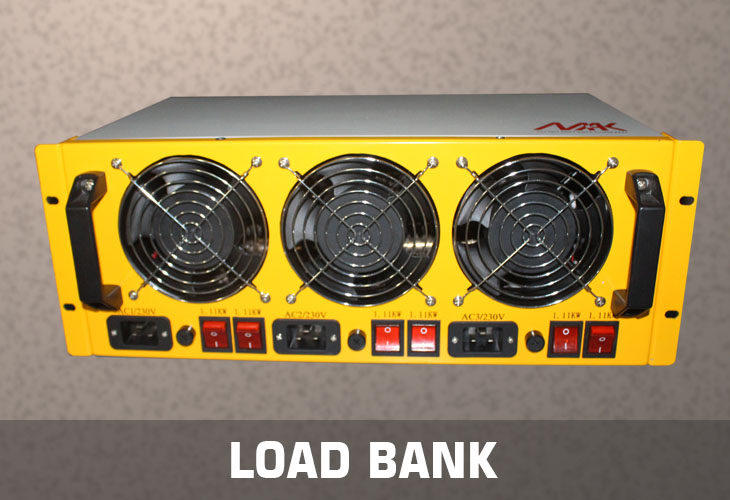

Load Bank Overview

Air+MAK’s Load Bank AC model ranges from 48kW to 144kW 400Hz AC and Load Bank DC model ranges from 300A to 2500A 28.5V DC digital with USB. Our Load banks come with latest digital communication via USB and are portable and come in a hardened shipping trolley that can be taken everywhere.

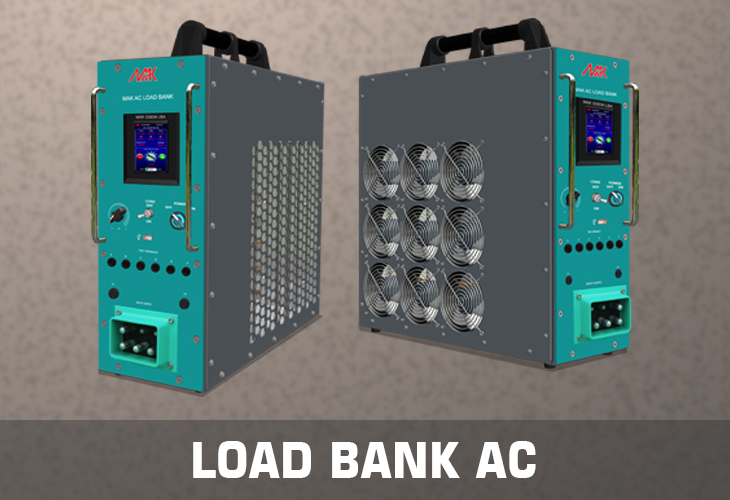

LOAD BANK AC

SALIENT FEATURES:

  • High performance cooling system
  • Standard aircraft power receptacle
  • Control panel with touch screen
  • Compact & lightweight aluminum enclosure
  • Trolley with rollers for easy movement
  • E & F circuit indicator

LOAD BANK AC

TECHNICAL SPECIFICATION

VOLTAGE (AC) 115V/200V±15%
FREQUENCY (HZ) 400Hz±20%
LOAD 40kW to 144 kW±5% @ 1.0 PF
CONTROL PANEL MAK GSEM-LBA touch screen based GUI
UNIT LOAD User selectable from 0-100%
CONTINUOUS OPERATION 2 hours @ 100% load
MODE OF OPERATION Bypass, Interlock
PROTECTION Phase reversal (PR)
COOLING Air cooled via cooling fans
PC INTERFACE USB with 5mtr cable (Included)
DATA LOGGING MAK LBMS software with data logger
OPERATING TEMPERATURE -20°C to +55°C (-4°F to +131°F)
RELATIVE HUMIDITY 0% to 95% without condensation)
NOISE LEVEL <68 dB
INGRESS PROTECTION DEGREE Up to IP21

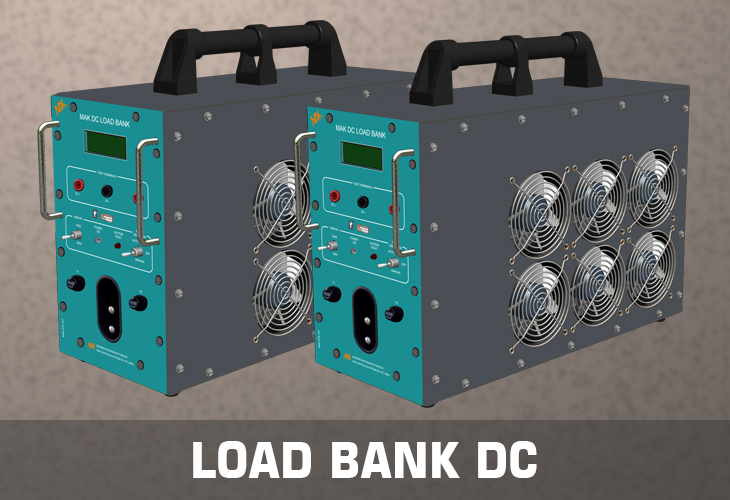

LOAD BANK DC

SALIENT FEATURES:

  • High performance cooling system
  • Standard aircraft power receptacle
  • 300A continuous load simulating
    aircraft starting conditions
  • Control panel with touch screen
  • Compact & lightweight aluminum enclosure
  • Trolley with rollers for easy movement

LOAD BANK DC

TECHNICAL SPECIFICATION

VOLTAGE (DC) 28.5V±20%
LOAD (A) Continuous – 300A / 600A Aircraft starting simulation Up to 2000A ±10%
CONTROL PANEL MAK GSEM-LBA touch screen based GUI
CONTINUOUS LOAD 300A and 600A for 1Hr
AIRCRAFT STARTING LOAD Auto simulation 2000A-1500A-600A-300A
COOLING Air cooled via cooling fans
PC INTERFACE USB with 5mtr cable (Included)
DATA LOGGING MAK LBMS software with data logger
OPERATING TEMPERATURE -20°C to+55°C (-4°F to +131°F)
RELATIVE HUMIDITY 0% to 95% without condensation
NOISE LEVEL  <68 dB
INGRESS PROTECTION DEGREE Up to IP21
